PU Foam Pre insulated Duct Panel with Aluminum Foil on Both Sides PIR foam air duct panel

FOB Price:

US 4.5-7 / Square Meter

Min.Order Quantity:

1000 Square

Supply Ability:

10000 Square per Meter/Square

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/P,T/T

Brand:

HUAHAI

Products Model:

HHTZ2

Products Details
Company Profile

Quick Details

Brand Name: HUAHAI

Model Number: HHTZ2

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Export standard plastic bag and carton,10pcs per pack
Delivery Detail: with 7 days after receivin the deposit money

Specifications

PU Foam Pre-insulated Duct Panel with Aluminum Foil on Both Sides/PIR foam air duct panel
lower thermal conductivity

PU Foam Pre-insulated Duct Panel with Aluminum Foil on Both Sides/PIR foam air duct panel

PRODUCT INTRODUCTION

PU foam pre-insulated duct panel is widely used in central air-conditioning duct system, which is the most advanced and energy-efficient air flow duct system of distribution. It is made of PU foam with aluminum foil surface. It is smooth and clean, no dust to affect health, which is environmentally friendly and excellent performance . Huahai compound air duct panels have become the ideal replacements of traditional ventilation ducts.

PRODUCT SPECIFICATION

Data sheet of PU air duct panel
1	PU foam Density : 50-52kg/m3
2	Thermal Conductivity : 0.022W/M.K
3	Compressing Strength : 300KPa
4	Aluminum Foil Thick : 60-80 micron
5	Bending Strength : 1.05MPa
6	Fire Proof Performance : Class"B"
7	Water Absorbing 1.9%
8	Smoke Density : 2%
9	Working Temperature : -150°C to 150°C
Dimension
1	2950/3950x1200x20
2	2950/3950x1200x25
3	2950/3950x1200x30
Certificates
1	ISO 9001:2008
2	ISO 14001:2004

PRODUCT PROPERTIES

Compound air duct panel has low thermal conductivity.Its insulation performance is good, both energy conservation and no condensation phenomenon. In use, it dose not produce resonance noise, but also absorbing part of the noise generated by the operation of the wind turbine.

PRODUCT ADVANTAGES

Light weight to reduce building load, making simple, safe, non-combustible, clean and so on. Huahai compound air duct panels have become the ideal replacements of traditional ventilation ducts.

PRODUCT USAGES

Widely used in the markets, Supermarkets, Guesthouse, Hotel, Stadium, Workshop, Airport, Hospital, Food Store, Pure Project, Underground Railway, High Speed Train Station and so on .

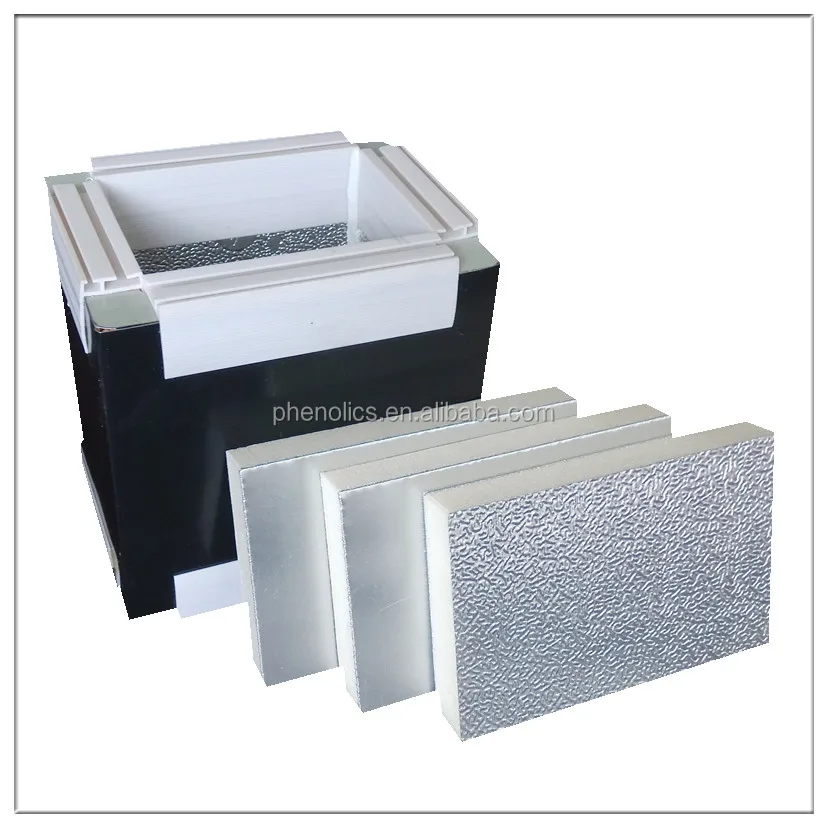

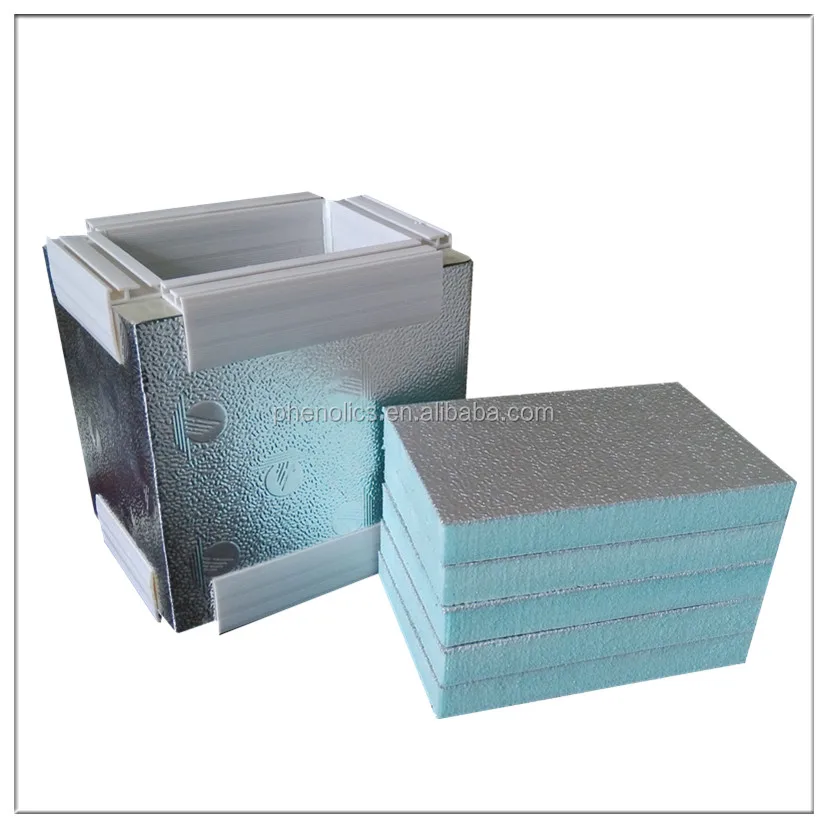

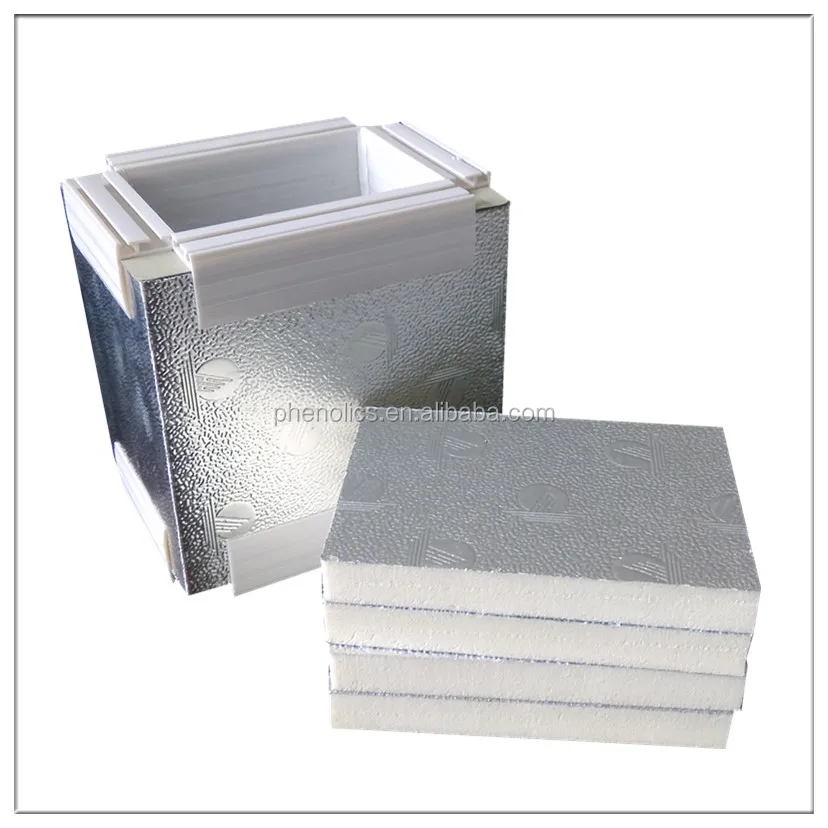

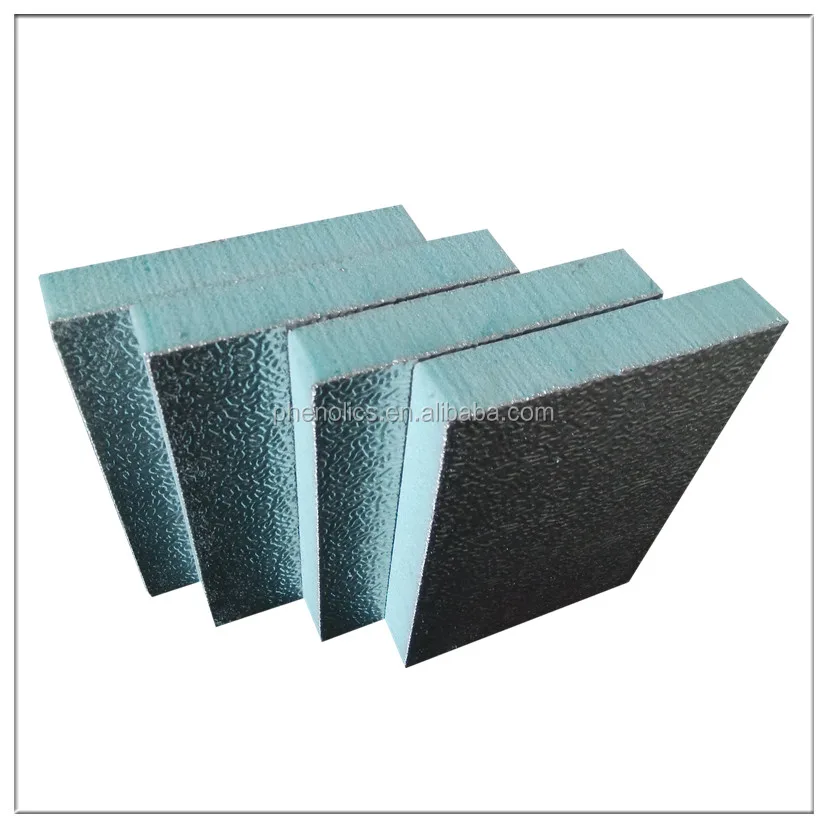

PRODUCT PICTURES

Main export countries and regions

Our products have been exported to more than thirty Countries and regions such as USA, Australia, Korea, Cyprus, Iran,Singapore,India, Thailand, Myanmar, Norway and Canada, Trinidad and Tobago, Peru, Japan, Guam,Laos,UAE, Indonesia,Taiwan, Panama, Philippines, etc.
